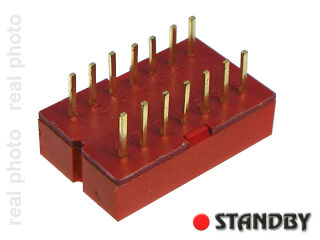

IDC 14 pol, DIP/DIL-IC-Sockel-Verbinder, Flachkabel gelötet

  • Obserwuj produkt:
  • Hersteller: JERMYN
  • Herstellerschlüssel: A23-2048LC
  • St.
  • Nettopreis: €0,66 / St. €0,81 / St.



Electrical Specification

Capacitance contac/contact 0,5pF max
Current rating per contact  1A max
Dielectric strenght between contacts 1kV min
Dielectric constantat 1MHz 3,4
Volume resistivity, ohms cm 1014
Insulation resistance contact/contact at 500V
 1010Ω
Dissipation factor at 1MHz 0,02
Mechanical Specification

Body material
 Nylon A190,Glass-filled type 66
Contact material
 Phosphor-Bronze
Contact finish 0,00001 in Gold over Nickel
Pin style Blade
Water absorption  24 hours at 23°C 0,6%
Temperature range -55 to +150°C
