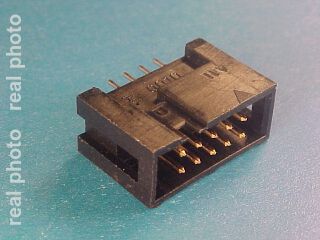

IDC 10 pol, männlich, THT, gerade

  • Obserwuj produkt:
  • Hersteller: FUJITSU
  • Herstellerschlüssel: FCN-744Q010-AU/0
  • St.
  • Nettopreis: €0,17 / St. €0,21 / St.
Connector Type BOARD CONNECTOR
Body Breadth 0.3460 inch
Body Depth 0.5310 inch
Body Diameter 0.7990 inch
Body/Shell Style RECEPTACLE
Contact Finish - Mating AU
Contact Gender MALE
Contact Material COPPER ALLOY
Contact Pattern RECTANGULAR
Contact Resistance 15 mohm
Contact Style SQ PIN-SKT
Dielectric Withstanding Voltage (V) 500VAC
Insertion Force-Max (N) 3.4194
Insulation Resistance 1.00E9 ohm
Insulator Material POLYESTER
Manufacturer Series 740
Mating Contact Pitch (inch) 0.1
Mating Contact Row Spacing (inch) 0.1
Mounting Style STRAIGHT
Mounting Type BOARD
Number Of Connectors ONE
Number Of PCB Rows 2
Number of Rows Loaded 2
Operating Temperature-Min -55 Cel
Operating Temperature-Max (Cel) 105
PCB Contact Pattern RECTANGULAR
PCB Contact Row Spacing (mm) 2.54
Polarization Key CTR W/GUIDE SLOTS
Rated Current (Signal) 1 A
Reference Standard UL
Reliability COMMERCIAL
Sub Category Headers and Edge Type Connectors
Terminal Length 0.1180 inch
Terminal Pitch 2.54 mm
Terminal Type SOLDER
Total Number of Contacts 10
Withdrawl Force-Min (N) .2502
Additional Feature MINI HEADER
