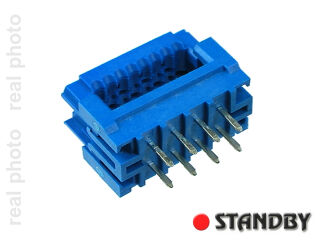

IDC 08 pol, Adapter für Flachkabel, THT

  • Obserwuj produkt:
  • Hersteller: BERG ELECTRONICS
  • Herstellerschlüssel: 69830-008
  • St.
  • Nettopreis: €0,16 / St. €0,20 / St.
General
 Insulation Displacement Contact (IDC)
PCB Connector
 Number of contacts (Total)
8
 Number of rows
2
 Orientation
Vertical
 Termination Style
IDC
 Application Equipment
QP-104
QP-112
QP-106
 Attachment type (Board)
Through Mount
Dimensional
 Length (Tail)
2.9 mm (0.114 in.)
Electrical
 Current rating
1 amp Continuous
 Resistance (Contact)
15 m ohms max.
 Resistance (Insulation)
50000 M-ohms
 Voltage rating
1000V AC rms
Physical
 Color (Housing)
Blue
 Material (Contact)
Phosphor Bronze
 Material (Housing)
Glass - Filled Thermoplastic Polyester
 Plating (Contact area)
3.81 µm (150 µin.) Tin-Lead
 Plating (Tail)
3.81 µm (150 µin.) Tin-Lead
 Underplating (Contact)
1.27 µm (50 µin.) Nickel
 Flammability rating
UL 94 V-0
 Temperature (Range)
-65°C to +105°C
Approvals / Certifications
 Approvals / Certifications
UL and cUL Approved
 UL File Number
E66906
 cUL File Number
E66906,2
Mounting
 Solder process
Compatible with Wave and Vapor phase soldering processes low temperature.
