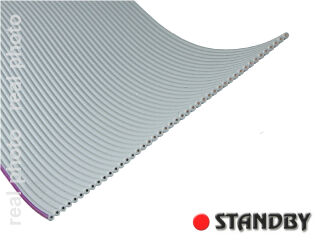

flachbandleitungen 44xAWG28 / 1,00mm

  • m
  • Nettopreis: €1,79 / m €2,20 / m

UL&CSA GRADE :
UL STYLE:2651
Rate temperature : 105°C
Rate voltage : 300V
Flame test : VW-1

CONDUCTOR : Stranded
AWG size : 28 AWG
Number of strands in each conductor : 7/0.127mm.
Lay of strands in each conductor : 0.5 inch at least
Cross section area : 156 mil.

INSULATION :
Material of insulation : polyvinyl chloride(PVC)gray
Insulation thickness average : 9mil.
Minimum insulation thickness : 7mil.

PHYSICAL PROPERTIES : After 7 days air oven at 136°C
Average tensile strength : 1500 lbs/inch2
Percent of original : 70% at least
Average elongation : 200%
Percent of or iginal : 65% at least

ELECTRONIC CHARACTERISTICS :
Spark test : 2500V
Dielectric strength test : Minimum 2KV in 1 minute
Conductor resistance : Maximum 237Ω/km
Insulation resistance : Minimum 100MΩ-km
Capacity : 56 pF/m (G-S-G)
Inductance : 1.45μH/m
Characteristic Impedance : 90Ω (G-S-G)
Propagation delay time : 4.65ns/m
