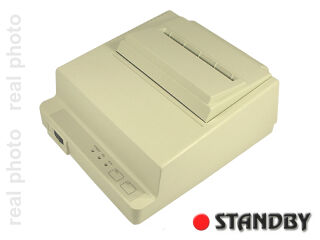

CBM-220 THERMO-POS-DRUCKER
- Obserwuj produkt:
- Hersteller: CITIZEN
- Herstellerschlüssel: CBM-220-RF220
-
- St.
- Nettopreis: €96,59 / St. €118,81 / St.
Der Drucker hat eine 30-tägige Garantie. Die Ware stammt aus Lagerbestands dem Verkauf aus der liquidierten Abteilung.
| ITEM | CONTENTS |
| Print method | Line thermal dot method |
| Character composition | 16 x 15 dot |
| Print width | 106,86+/-0,3mm |
| Total dots | 640 dot/line |
| Horizontal resolution | 6 dot/mm |
| Print speed | Approx. 120 dot line/sec. |
| Character number per line | 40 column |
| Character size | 2.50 × 2.34mm |
| Paper feed method | Friction feed method |
| Horizontal dot pitch | 0,167mm |
| Vertical dot pitch | 0,167mm |
| Interface |
P: Parallel interface (8 bit) R: Serial interface (RS-232C) |
| Input buffer | 915 bytes |
| Paper end detection |
The ALM light will illuminate when the printer is out of paper. It will stop the printing process while it output a PE signal as an alarm. |
| Head-Up detection | The ALM light will illuminate when the head is up and output an alarm signal. |
| Automatic temperature compensation circuit |
The themister incorporated in the thermal head will monitor the head temperature and controlthe print quality. |
| Print mode |
Normal mode Bit image graphic mode |
| Paper specifications |
Width: 112+/-0,5mm Lenght: Approx. 25m Outside diameter of roll: 52mm or less Inside diameter of roll core: 12Ø+/-0,5mm Thickness of paper: 65+/-0,5um End mark (50cm red marking from the paper end) |
| Tensile force on paper | Over 50g normal temperature and normal humidity |
| Auto-cutter | With auto-cutter |
| External output connector | D: DC24V, 36Ω or move (1 circuit) |
| Reliability |
Print pulse: MCTF 3 x 107 pulse Print head life: Over 30km |
|
Operation temp. & humidity |
0 ∼ 40°C 35 ∼ 85% RH Must be under the head up condition |
|
Storage temp. |
-25°C ∼ 60°C 5 ∼ 90% RH |
|
Dimensions |
190(W) × 224(D) × 80(H)mm |
|
Net weight |
Approx. 2,7kg |
|
Power voltage |
AC 220V+/-10% 50/60Hz |
|
Power consumption |
Printing: approx. 60W Stand-by: approx. 10W |
