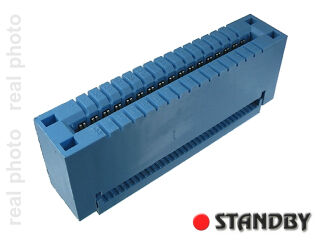

Buchse R=2,54mm; 34 pin; für Flachkabel

  • Obserwuj produkt:
  • Hersteller: T&B
  • Herstellerschlüssel: 609-3415M
  • St.
  • Nettopreis: €1,32 / St. €1,62 / St.
Connector Type CARD EDGE CONNECTOR
Body Depth 0.7300 inch
Body Diameter 2.16 inch
Contact Design PREASSEM CONN
Contact Gender FEMALE
Contact Pattern RECTANGULAR
Contact Style BELLOWED TYPE
Dielectric Withstanding Voltage (V) 1000VAC
Insulation Diameter-Min 0.0310 inch
Insulation Resistance 1.00E9 ohm
Insulator Color BLUE
Insulator Material GLASS FILLED THERMOPLASTIC
Manufacturer Series 609
Mounting Type CABLE
Number of Rows Loaded 2
Operating Temperature-Min -55 Cel
Operating Temperature-Max (Cel) 125
Plating Thickness (inch) 30u
Rated Current (Signal) 1 A
Reference Standard UL, CSA
Reliability COMMERCIAL
Sub Category Headers and Edge Type Connectors
Terminal Type IDC
Total Number of Contacts 34
UL Flammability Code 94V-0
Wire Size-Min 28 AWG
Wire Size-Max 26 AWG
Additional Feature POLARIZED
