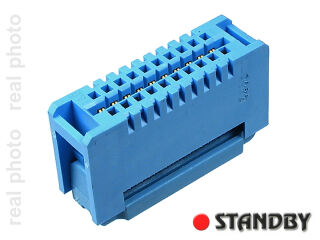

Buchse R=2,54mm; 20 pin; für Flachkabel
- Obserwuj produkt:
- Hersteller: T&B
- Herstellerschlüssel: 622-2015
-
- St.
- Nettopreis: €0,58 / St. €0,71 * / St.
| Connector Type | CARD EDGE CONNECTOR |
| Body Depth | 0.7300 inch |
| Body Diameter | 1.46 inch |
| Contact Design | PREASSEM CONN |
| Contact Finish - Mating | AU ON NI |
| Contact Gender | FEMALE |
| Contact Material | BERYLLIUM COPPER |
| Contact Pattern | RECTANGULAR |
| Contact Style | BELLOWED TYPE |
| Dielectric Withstanding Voltage (V) | 1000VAC |
| Insulation Diameter-Min | 0.0310 inch |
| Insulation Resistance | 1.00E9 ohm |
| Insulator Color | BLUE |
| Insulator Material | GLASS FILLED THERMOPLASTIC |
| Manufacturer Series | 622 |
| Mounting Type | CABLE |
| Number of Rows Loaded | 2 |
| Operating Temperature-Min | -55 Cel |
| Operating Temperature-Max (Cel) | 125 |
| Plating Thickness (inch) | 30u |
| Rated Current (Signal) | 1 A |
| Reference Standard | UL, CSA |
| Reliability | COMMERCIAL |
| Sub Category | Headers and Edge Type Connectors |
| Terminal Type | IDC |
| Total Number of Contacts | 20 |
| UL Flammability Code | 94V-0 |
| Wire Size-Min | 28 AWG |
| Wire Size-Max | 26 AWG |
| Additional Feature | POLARIZED |
