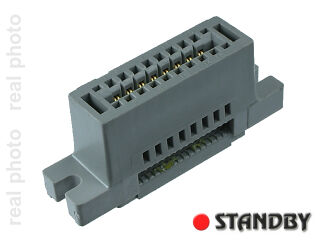

Buchse R=2,54mm; 16 pin; für Flachkabel

  • Obserwuj produkt:
  • Hersteller: 3M
  • Herstellerschlüssel: 3368-0002
  • St.
  • Nettopreis: €4,26 / St. €5,24 / St.
Connector Type CARD EDGE CONNECTOR
Body Breadth 0.4410 inch
Body Depth 0.7090 inch
Body Diameter 1.8 inch
Contact Design PREASSEM CONN
Contact Finish - Mating GOLD (30) OVER NICKEL (100)
Contact Gender FEMALE
Contact Material COPPER ALLOY
Contact Pattern RECTANGULAR
Contact Style BLADE PIN-SKT
Dielectric Withstanding Voltage (V) 1000VAC
Insulation Resistance 1.00E9 ohm
Insulator Color GRAY
Insulator Material GLASS FILLED POLYESTER
Manufacturer Series 3000
Mating Contact Pitch (inch) 0.1
Mounting Style RIGHT ANGLE
Mounting Type BOARD
Number of Rows Loaded 2
Operating Temperature-Min -55 Cel
Operating Temperature-Max (Cel) 105
Option GENERAL PURPOSE
Plating Thickness (inch) 30u
Rated Current (Signal) 1 A
Reference Standard UL
Reliability COMMERCIAL
Sub Category Headers and Edge Type Connectors
Terminal Pitch 2.54 mm
Terminal Type SURFACE MOUNT
Total Number of Contacts 16
UL Flammability Code 94V-0
Wire Size-Min 28 AWG
Wire Size-Max 26 AWG
Additional Feature PANEL MOUNTABLE
