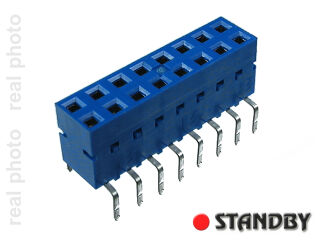

2x08 polig Buchsenleiste

  • Obserwuj produkt:
  • Hersteller: BERG ELECTRONICS
  • Herstellerschlüssel: 71991-308
  • St.
  • Nettopreis: €0,30 / St. €0,37 / St.
General
 Hold Down Style
No Locating Pegs
 Number of contacts (per row)
8
 Number of contacts (Total)
16
 Number of rows
2
 Orientation
Vertical
 Packaging
Tube
 Mating half
Mates with 0.64 mm (0.025 in.) Square pins.
Dimensional
 Thickness (Board)
1.6 mm (0.062 in.) or 2.36 mm (0.093 in.)
 Footprint (Board)
2.54 mm x 7.62 mm (0.1 in.x 0.3 in.)
Electrical
 Current rating
3A max. per Contact/2A max. per Contact for Full Load
 Resistance (Contact)
15 milli ohms Initial, 20 milli ohms After test
 Resistance (Insulation)
100000 M-ohms
 Voltage rating
1000V rms
Mechanical
 Insertion force
1.50N (150 gf) per Contact
 Withdrawal Force
0.3N (30 gf) min. per Contact
Mounting
 Solder process
Compatible with Wave Soldering Processes
Physical
 Color (Housing)
Blue
 Material (Contact)
Phosphor Bronze
 Material (Housing)
Glass - Filled Thermoplastic Polyester
 Plating (Contact area)
0.76 µm (30 µin.) Gold
 Plating (Tail)
2.54 µm (100 µin.) Tin
 Underplating (Contact)
1.27 µm (50 µin.) Nickel
 Flammability rating
UL 94 V-0
 Temperature (Range)
-65 °C to +125 °C
Approvals / Certifications
 Approvals / Certifications
UL and CSA Approved
