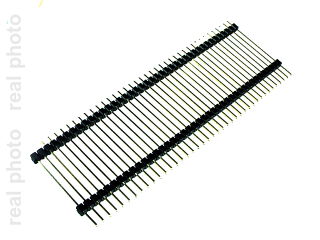

1x40 polig Stiftleiste 36mm

  • Obserwuj produkt:
  • Hersteller: CONNFLY
  • Herstellerschlüssel: DS1029-01-1*40P8BVA2
  • St.
  • Nettopreis: €0,81 / St. €1,00 / St.

Stiftleiste gerade 1x40 pol, R=2,54mm, Gesamthöhe 36mm, ROHS



Name：
Board spacers pin header pitch 2.54mm single row V/T type
Materials：

INSULATOR:PBT GLASS FIBER THERMOPLASTIC(UL 94V-0).
CONTACT: COPPER ALLOY.
CONTACT PLATED: GOLD/TIN OVER NICKEL.
Specifications：

CURRENT RATING: 1.5 A
OPERATING TEMPERATURE:-40-105℃.
CONTACT RESISTANCE:20mΩ max.(initial).
INSULATION RESISTANCE:1000MΩ min.
DIELECTRIC WITHSTANDING VOLTAGE:AC 600V PER MINUTE.
