1x40 polig Stiftleiste 25mm

  • Obserwuj produkt:
  • Hersteller: CONNFLY
  • Herstellerschlüssel: DS1029-011*40P8BVA40
  • St.
  • Nettopreis: €0,46 / St. €0,56 / St.

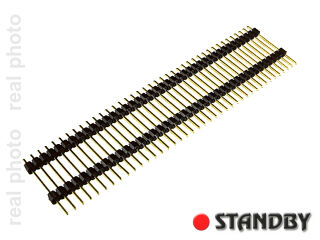

Stiftleiste gerade 1x40 pin, R=2,54mm, Gesamthöhe 25mm, ROHS

Name： Board spacers pin header pitch 2.54mm single row V/T type
Materials：


INSULATOR:PBT GLASS FIBER THERMOPLASTIC(UL 94V-0).
CONTACT: COPPER ALLOY.
CONTACT PLATED: GOLD/TIN OVER NICKEL.
Specifications：
CURRENT RATING: 1.5 A
OPERATING TEMPERATURE:-40-105℃.
CONTACT RESISTANCE:20mΩ max.(initial).
INSULATION RESISTANCE:1000MΩ min.
DIELECTRIC WITHSTANDING VOLTAGE:AC 600V PER MINUTE.
