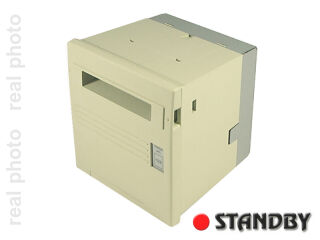

CBM-291 Drukarka termiczna
- Obserwuj produkt:
- Producent: CITIZEN
- Kod producenta: CBM-291-34F
-
-
Historia ceny
- szt.
- Cena netto: 1 218,70 zł 1 499,00 zł
Na drukarkę udzielana jest 30 dniowa gwarancja. Towar pochodzi z wyprzedaży zapasów magazynowych likwidowanego działu.
| ITEM | CONTENTS |
| Printing method | Line Thermal Dot Printing System |
| Print speed | 50 mm / s (MAX) |
| Dot density | 8 Dots / mm (Vertical / Horizontal) |
| Number of columns |
Font A : 34 columns Font B : 46 columns |
| Character size |
Font A : 1.25 mm × 3.00 mm (10 × 24 + 2 dot space) Font B : 0.88 mm × 2.13 mm ( 7 × 17 +2 dot space) |
| Character type |
Alphanumeric, international characters |
| Bar code type |
UPC-A/E, JAN (EAN) 13 / 8 columns , ITF CODE 39, CODE 128, CODABAR |
| Line pitch |
4.23 mm (1/6 inch) (Selectable by command) |
| Paper | Thermal Roll Paper Paper Width : 58 mm Roll Diameter : Ø50 mm or less |
| Interface |
Parallel (conforms to Centronics) or Serial (conforms to RS-232C) (Selectable by dip switch) |
| Input buffer | 4 K bytes |
| Paper end detection | Equipped (Printer stops printing when roll paper runs out completely.) |
| Auto-Loading function |
Equipped (Printer automatically feeds paper when paper sensor detects paper in paper inlet.) |
| International Character |
U.S.A., France, Germany, U.K., Denmark 1,2, Sweden, Italy, Spain, Japan, Norway (Specified by command) |
|
Auto paper cutter (Only CBM-291) |
Printer automatically cuts paper by command. Partial cut (One tear point left) and Full cut are available by command. |
|
Supply voltage |
5V ± 5 % Stand-by : Aprrox.0.2A Printing : Approx. 0.2A 24 V ± 5 % Stand -by : Approx. 10mA Printing : Average : 1.8 A(Peak approx. 6A) |
|
Operating environment |
5 ∼ 40°C 35 ∼ 85 % RH (No condensation) |
|
Storage environment |
-20 ∼ 60 °C 10 ∼ 90 % RH (No condensation) |
|
Outer dimension |
106 mm (W) × 109 mm(H) × 99 mm(D) |
|
Weight |
CBM-290: Approx. 460g (Main body only) CBM-291: Approx. 600g (Main body only) Mounting backet: Approx. 50g |
|
Safety standard |
UL, CUL, TÜV. GS |
|
EMI |
FCC: Class A , VCC I: Class A (These standards are applied only for the printer which is used with our exclusive AC Adapter.) |
|
Reliability |
Print head life : Pulse resistance 50 million pulse (printing ratio 12.5%) Wear resistance 30 km (at normal temperature and humidity, with recommended paper) Auto cutter life : 300,000 cuts (CBM-291) |
