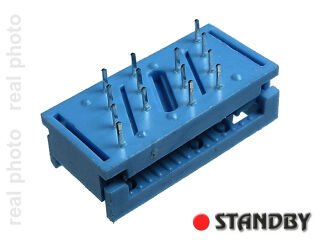

IDC 14 pin, przejściowe z taśmy na druk

  • szt.
  • Cena netto: 1,22 zł / szt. 1,50 zł / szt.
Connector Type BOARD CONNECTOR
Body Breadth 0.4350 inch
Body Depth 0.2370 inch
Body Diameter 0.9100 inch
Body/Shell Style RECEPTACLE
Contact Gender MALE
Contact Pattern STAGGERED
Contact Style IDC
Dielectric Withstanding Voltage (V) 1000VAC
Insulation Resistance 1.00E9 ohm
Insulator Color BLUE
Insulator Material GLASS FILLED THERMOPLASTIC
Manufacturer Series 609
Mating Contact Row Spacing (inch) 0.1
Mounting Style STRAIGHT
Mounting Type CABLE
Number Of Connectors ONE
Number Of PCB Rows 4
Number of Rows Loaded 4
Operating Temperature-Min -55 Cel
Operating Temperature-Max (Cel) 125
PCB Contact Pattern STAGGERED
PCB Contact Row Spacing (mm) 2.54
Rated Current (Signal) 1 A
Reference Standard UL, CSA
Reliability COMMERCIAL
Sub Category Headers and Edge Type Connectors
Terminal Length 0.1000 inch
Terminal Type IDC
Total Number of Contacts 14
UL Flammability Code 94V-0
Additional Feature SOLDERED DIRECTLY TO THE BOARD
