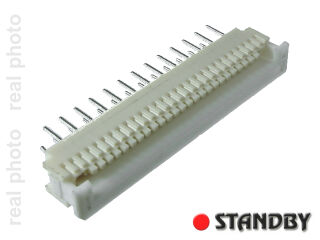

Złącze FFC/FPC 1,00mm 26pin

  • szt.
  • Cena netto: 3,00 zł / szt. 3,69 zł / szt.

General

Category FFC/FPC Connectors
Series 52030



Physical

Circuits (Loaded) 26
Contact Position N/A
Durability (mating cycles max) 30
Entry Angle Vertical
Mated Height 5.20mm
Material - Metal Phosphor Bronze
Material - Plating Mating Tin-Bismuth
Material - Plating Termination Tin-Bismuth
Material - Resin Nylon, Polyester
Net Weight 1021.301/mg
Number of Rows 1
Orientation Vertical
PC Tail Length 3.20mm
PCB Retention Yes
PCB Thickness - Recommended 1.60mm
Packaging Type Tray
Pitch - Mating Interface 1.00mm
Polarized to PCB No
Stackable No
Temperature Range - Operating -20°C to +80°C
Termination Interface: Style Through Hole
Wire/Cable Type FFC/FPC



Electrical

Current - Maximum per Contact 1A
Voltage - Maximum 50V
