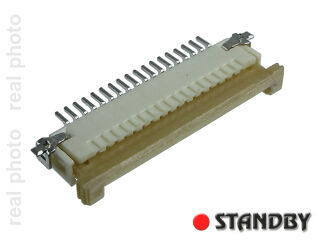

Złącze FFC/FPC 1,00mm 18pin

  • szt.
  • Cena netto: 1,62 zł / szt. 1,99 zł / szt.

General

Category FFC/FPC Connectors
Series 52103



Physical

Circuits (Loaded) 18
Contact Position Top
Durability (mating cycles max) 30
Entry Angle 90° Angle
Flammability 94V-0
Mated Height 2.70mm
Material - Metal Phosphor Bronze
Material - Plating Mating Tin-Lead
Material - Plating Termination Tin-Lead
Number of Rows 1
Orientation Right Angle
PC Tail Length 2.00mm
PCB Locator Yes
PCB Retention Yes
Packaging Type Tray
Pitch - Mating Interface 1.00mm
Plating min - Mating 3.048µm
Plating min - Termination 3.048µm
Polarized to PCB No
Stackable No
Surface Mount Compatible (SMC) N/A
Temperature Range - Operating -20°C to +85°C
Termination Interface: Style Surface Mount
Wire/Cable Type FFC/FPC



Electrical

Current - Maximum per Contact 1A
Voltage - Maximum 125V
