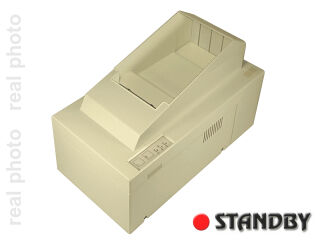

CBM-750 Drukarka igłowa kioskowa

  • szt.
  • Cena netto: 405,69 zł / szt. 499,00 zł / szt.

Na drukarkę udzielana jest 30 dniowa gwarancja. Towar pochodzi z wyprzedaży zapasów magazynowych likwidowanego działu.


General Specifications


1 Print Method                           Bidirectional serial dot impact method
2 Character composition              7 × 7 dots (1ncl. half-dots)
3 Character number per line        40 columns: 360 dot/line
4 Print speed                            40 columns: approx. 3.0 line/sec.
5 Character size                        40 columns: 1.36(W) × 2.4 (H) mm
6 Line pitch                              C: Character Type: 4.23 mm (1/6 inch)
                                              G: Graphic Type: 2.82 mm (1/9 inch)
7 Paper size                              Friction Type: 76.0 ~ 0.5 mm (W) ×80 mm (Dia.) 3.0 inch (W) × 3.0 inch (Dia.)
                                              Pin Wheel Type: 76 ~ 89 mm (W) 3 ~ 3.5 inch (W)
8 Interface                               R: Serial interface (RS232C, 20 mA current loop)
9 Input buffer                           7K bytes or 2 line buffer
10 Input buffer back-up              B Type: Duration of back-up: More than 100 hours. (But after 10 minutes operation)
11 Paper end detection               When paper is near the end, the buzzer actuates and print operation is interrupted, or PE signal is issued.

12 Validation Print                      Available only for V-Type (1 line print)
13 Auto cutter                          With cutter Partial cut/Full cut*3
14 Cassette ribbon                     Two color (Black and Red) print IR-61R/B*4
15 Paper winder                         Model AW-2 available as option.
16 Power voltage*5                    230V ± 10%, 50/60Hz (For Europe)
17 Power consump.                    Approx. 30W
18 Operation temp. & humidity      5° to 35°C / 41° to 95°F 10% to 85% RH
19 Storage temp.                       -20° to 70°C
20 Net weight Approx.                 Approx. 3.6 kg (750)
