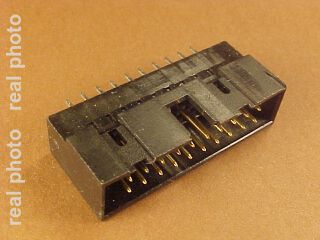

IDC 20 pin, wtyk do druku, prosty

  • szt.
  • Cena netto: 1,42 zł / szt. 1,75 zł / szt.
Connector Type BOARD CONNECTOR
Body Breadth 0.3460 inch
Body Depth 0.5430 inch
Body Diameter 1.26 inch
Body/Shell Style RECEPTACLE
Contact Finish - Mating GOLD (30) OVER NICKEL
Contact Finish - Termination TIN
Contact Gender MALE
Contact Material BRASS
Contact Pattern RECTANGULAR
Contact Style RND PIN-SKT
Dielectric Withstanding Voltage (V) 1000VAC
Insulation Resistance 1.00E9 ohm
Insulator Color BLACK
Insulator Material GLASS FILLED POLYESTER
Manufacturer Series 827745
Mating Contact Pitch (inch) 0.1
Mating Contact Row Spacing (inch) 0.1
Mounting Style STRAIGHT
Mounting Type BOARD
Number Of Connectors ONE
Number Of PCB Rows 2
Number of Rows Loaded 2
Operating Temperature-Min -65 Cel
Operating Temperature-Max (Cel) 105
Option GENERAL PURPOSE
PCB Contact Pattern RECTANGULAR
PCB Contact Row Spacing (mm) 2.54
Plating Thickness (inch) 31u
Rated Current (Signal) 1 A
Reference Standard UL, CSA
Reliability COMMERCIAL
Sub Category Headers and Edge Type Connectors
Terminal Length 0.1180 inch
Terminal Pitch 2.54 mm
Terminal Type SOLDER
Total Number of Contacts 20
UL Flammability Code 94V-0
Additional Feature AMP-LATCH
