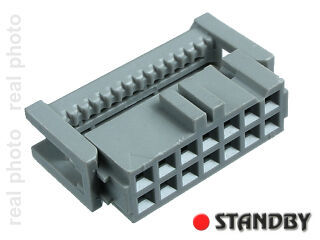

IDC 14 pin, gniazdo na taśmę
- Obserwuj produkt:
- Producent: 3M
- Kod producenta: 89114-0101
-
-
Historia ceny
- szt.
- Cena netto: 0,70 zł 0,86 zł
| Connector Type | BOARD CONNECTOR |
| Body Breadth | 0.2400 inch |
| Body Depth | 0.5300 inch |
| Body Diameter | 0.8800 inch |
| Body/Shell Style | SOCKET |
| Contact Finish - Mating | GOLD (30) OVER NICKEL (50) |
| Contact Gender | FEMALE |
| Contact Material | PHOSPHOR BRONZE |
| Contact Pattern | RECTANGULAR |
| Contact Style | SQ PIN-SKT |
| Dielectric Withstanding Voltage (V) | 1400VAC |
| Insulation Resistance | 1.00E9 ohm |
| Insulator Color | GRAY |
| Insulator Material | GLASS FILLED POLYBUTYLENE TEREPHTHALATE |
| Manufacturer Series | 891 |
| Mating Contact Pitch (inch) | 0.1 |
| Mating Contact Row Spacing (inch) | 0.1 |
| Mounting Option 1 | LOCKING |
| Mounting Type | CABLE |
| Number of Rows Loaded | 2 |
| Operating Temperature-Min | -55 Cel |
| Operating Temperature-Max (Cel) | 105 |
| Option | WITH CABLE ASSEMBLY |
| Plating Thickness (inch) | 30u |
| Polarization Key | CENTER |
| Rated Current (Signal) | 1.25 A |
| Reference Standard | UL |
| Reliability | COMMERCIAL |
| Sub Category | Headers and Edge Type Connectors |
| Terminal Type | IDC |
| Total Number of Contacts | 14 |
| UL Flammability Code | 94V-0 |
| Wire Size-Min | 28 AWG |
| Wire Size-Max | 26 AWG |
