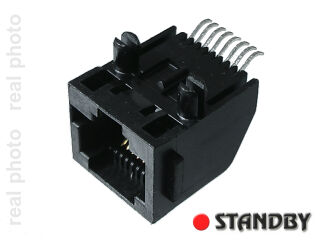

Gniazdo 8P8C SMD

  • Producent: AMP
  • Kod producenta: 555078-1
  • Dostępność: Jest
  • szt.
  • Cena netto: 2,43 zł 2,99 zł

Gniazdo kątowe RJ45, SMD

Product Type = Connector
Jack Type = RJ45
PCB Mounting Orientation = Side Entry (Right Angle)
PCB Mount Style = Surface Mount
Termination Method to PC Board = Solder
Performance Category = Cat 3
LED = Without
Grounding Options = Without
Panel Stops = With
Keyed = Yes
Profile = Low
Color = Black
Latch Style = Standard

Mechanical Attachment:
Panel Mount Retention = With
Flanged = No

Electrical Characteristics:
Shielded = No

Termination Features:
Solder Tail Contact Plating = Tin-Lead over Nickel

Dimensions:
Height (mm [in]) = 12.70 [0.500]
PCB Thickness, Recommended (mm [in]) = 1.57 [0.062]

Body Features:

Inverted Jack Face = No

Contact Features:

Contact Plating, Mating Area, Material = Gold (50)
Contact Base Material = Phosphor Bronze

Housing Features:

Housing Material = High Temperature Nylon
UL Flammability Rating = UL 94V-0

Configuration Features:

Preloaded = Yes
Port Configuration = Single
Jack Configuration = 1 x 1
Number of Positions = 8
Number of Contacts Loaded = 8

Industry Standards:

RoHS/ELV Compliance = ELV compliant, 5 of 6 Compliant
Lead Free Solder Processes = Reflow solder capable to 245°C
